Dome Cap Adapter

Monadnock Dome Cap Batton Adapter

The adapter fits both "Standard Cap" Autolock® and Friction Batons, giving you the ultimate flexibility for all your operational needs.

With the standard cap removed, slide the dome adapter over the standard cap and replace the new assembly as before.

Features:

• User Configurable
• Hard Anodized Finish
• Tool Free Installation
• Fits “Standard Cap” Autolock ® and Friction Batons

Unleash Unprecedented Control

Take your baton to the next level with our cutting-edge Dome Cap Adapters. Specifically designed for batons originally equipped with a standard cap, these adapters seamlessly convert your gear into a Dome style, giving you unparalleled control and durability. The result? A transformed baton that not only performs better but feels more natural in your hand. The Dome adapter's hard anodized finish ensures that your baton can withstand even the most challenging environments.

Effortless Installation, Endless Configurations

Why settle for one-size-fits-all when you can customise your own baton configuration? With our Dome Cap Adapters, tailoring your baton to your specific needs has never been easier. The adapter is user-configurable, allowing you to make adjustments on the fly with no special tooling or training necessary. And the best part? The installation is tool-free, making it a hassle-free process that you can perform yourself or have done by your service.

The installation of the Monadnock Dome Cap Baton Adapter can be executed in a series of 6 methodical steps:

Step 1 - Disassemble the cap and rod assembly by unscrewing the components.

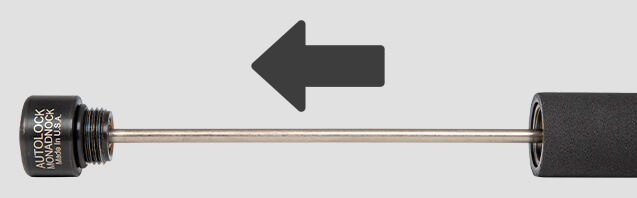

Step 2 - Followed by their separating the cap and rod assembly.

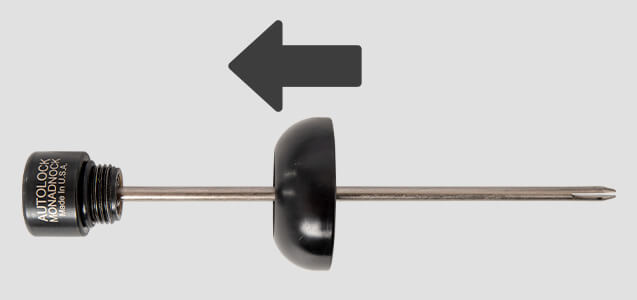

Step 3 - Navigate the Dome Cap Adapter along the rod's length, ensuring it is strategically positioned to encase the standard cap.

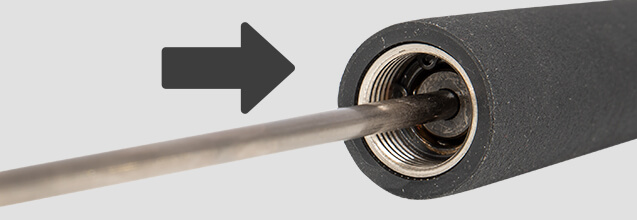

Step 4 - Insert the rod into the baton's central aperture and proceed to resecure the end cap.

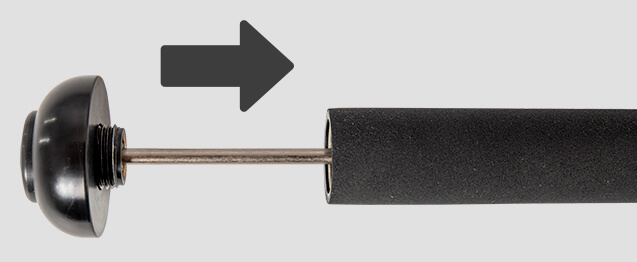

Step 5 - Extend the rod back into the baton, ensuring it is fully integrated.

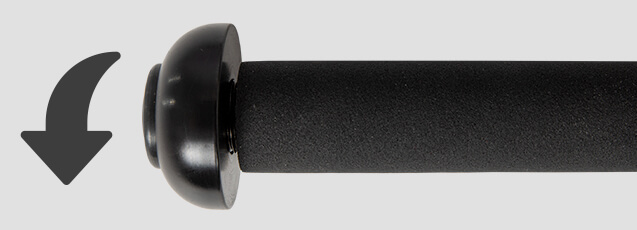

Step 6 - Conclude the installation by manually fastening the standard cap in conjunction with the Dome Cap Adapter.

Specifications:

• Model Number: 1370046
• Height: 0.675” (1.72 cm)
• Diameter: 1.855” (4.69 cm) - Friction Lock / Autolock
• Finish: Black hard coat anodized 6061-T6 Aluminium

Quality Control Program:

During each stage of the operational workflow, meticulous in-process evaluations are conducted, culminating in a comprehensive inspection and rigorous testing before the final dispatch. These in-process assessments are in strict alignment with the U.S. Department of Defense's MIL-STD-105E standards, as well as the United Kingdom's Defence Ministry's DEF-131-A specifications. Each segment of 4130 steel tubing comes with mill certification, which encompasses a detailed chemical analysis of the steel composition.

Please keep in mind that the baton seen in the photos is not included with the dome cap adapter.
